Vess A6600-SBP
A new architecture for hardware and infrastructure platforms specific to the middle market.
Modifié le jeudi 9 mars 2023
The industry-leading combination of PROMISE Vess A6600-SBP for Milestone innovative video technology accelerates faster decision making by giving partners and clients the ability to rapidly deployment and achieve faster time-to-value across solutions, while significantly reducing TCO.
What is needed
De PROMISE Technology, Inc.
-
Vess A6600
Vess A6600-SBP for Milestone System Builder Program
De Milestone Systems
-
Milestone XProtect
Milestone XProtect Product: XProtect Professional + 2019 R1
Supported no. of Cameras: 135
CPU: Intel Xeon Processor E3-1275 v5
RAID Level used or LIVE data (if applicable): RAID 5,15+1 Disks
RAID Controller Type: Promise RAID
GPU : Intel HD Graphics P630
Memory:16GB
Storage :56 TB
Windows Edition: Windows 10 Enterprise (10.0, Build 17134)
Supported no. of Cameras: 135
CPU: Intel Xeon Processor E3-1275 v5
RAID Level used or LIVE data (if applicable): RAID 5,15+1 Disks
RAID Controller Type: Promise RAID
GPU : Intel HD Graphics P630
Memory:16GB
Storage :56 TB
Windows Edition: Windows 10 Enterprise (10.0, Build 17134)
Featured content
Customer Stories
Overview
How it works
How to install
Overview
Vess A6600-SBP - A new architecture for hardware and infrastructure platforms specific to the middle market.
Storing continuous video streams, often from hundreds of cameras, presents storage management challenges that are unique to video surveillance. As a cost saving measure, Milestone VMS employs a storage architecture specifically designed for efficient storage of multiple real-time video streams. One of Milestone innovations is multistage archiving for video and audio data that must be stored for a long period.High Availability or HA is concept used in system design and service implementation, it refers to the ability to maintain a certain level of operational performance or service from a particular application in the event that some part of the system fails. An HA solution typically consists of failover clusters. A failover cluster is a set of loosely coupled servers with failover capabilities. Each system is self-contained and independent, the servers are monitoring the health of each other.
Key features
- Higher Capacity with Better Design
- Reduces Deployment Costs and Complexity
- Reduce the complexity of Maintenance by OPAS
- The subsystems are capable of continuous recording and playback operation without dropping frames.
- PROMISE SMARTBOOST™ Technology significantly improves performance that is otherwise limited by storage equipment bottlenecks.
How it works
1 de 6
How to configure RAID on Vess A-Series Appliance for Milestone XProtect VMS (Video)
2 de 6
Step 1
Please make sure configure as below:
1. RAID5+ Spare/RAID10
2. Stripe Size:1MB
3. Allocation Unit Size:64K
3 de 6
Step 2:
Array configuration:
Click Disk Arrays> Create> Advanced
4 de 6
Step 3:
Create Disk Array:
Select RAID5 and Stripe size:1MB> Updated
5 de 6
Step 4:
Spare Drives:
Create > Revertible>ID16> Update
6 de 6
Step 5:

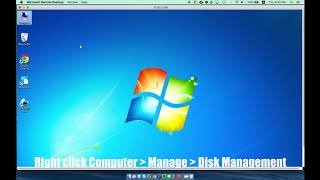

Computer Management:
1.Select GPT
2.New Simple Volume
3.Change Allocation unit size to 64K
How to install
Documentation
This is where you can find additional documentation
| Vess A6600 Product Manual | pdf Download (8,11 MB) |
| A Milestone System Builder Tailored Solution | pdf Download (8,17 MB) |
| Milestone XProtect Corporate 2019 R1 - Promise Vess A6600 | pdf Download (100,33 KB) |
| Milestone XProtect Professional+ 2019 R1 - Promise Vess A6600 | pdf Download (100,33 KB) |
Vérification Milestone
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| N/A Download |
Specification
Required PROMISE Technology, Inc. product(s)
Vess A6600-SBP for Milestone System Builder Program
Has proven compatibility with the following Milestone versions:
-
XProtectCorporate2019 R1, 02/05 2019
-
XProtectProfessional+2019 R1, 02/05 2019
Is also expected to work with:
-
XProtectCorporate2019 R1, 02/05 2019 et les versions ultérieures
-
XProtectProfessional+2019 R1, 02/05 2019 et les versions ultérieures
