Manage PTZ presets

Depending on your surveillance system, you can create, edit and delete PTZ presets.

Add PTZ presets

You can define additional PTZ presets:

1. In the view, select the relevant PTZ camera that you want to give a new PTZ preset.
2. On the camera toolbar, click the PTZ icon to open the PTZ menu.

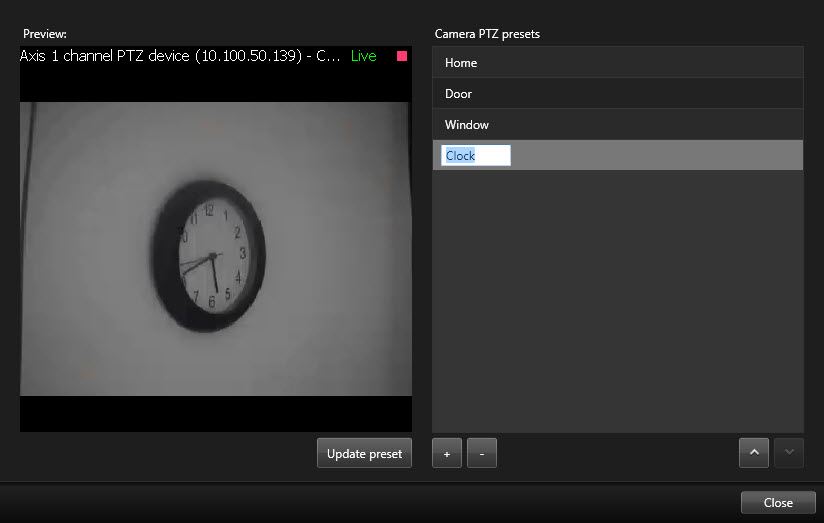

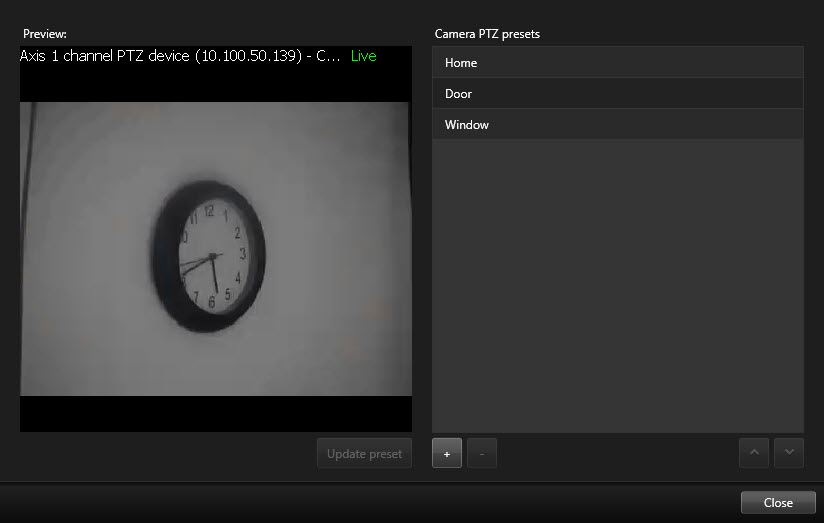

3. Click Manage PTZ presets to open the dialog box.



4. Click to add a new preset entry.
5. Select the PTZ preset entry and type a new name for the PTZ preset.
6. Use the PTZ buttons to navigate to the relevant position and click Update preset to save.
7. Use the arrows to move a PTZ preset up or down in the list. This can be useful if your list contains many presets.

Delete PTZ presets

To delete an existing preset, select it and click .

Edit PTZ presets

1. To edit the name of the PTZ preset, select the PTZ preset name.
2. Double-click the text and overwrite the existing name.



3. Use the PTZ buttons to navigate to the required position and then click Update preset to save.
4. Click Close.
