Add floor plans to levels (smart map)

To help you illustrate the interior of a building, you can add floorplans as custom overlays to the levels. As you move between the levels, automatically the associated floor plans are displayed.

Requirements:

Smart map editing has been enabled on your Smart Client profile in Management Client.

Steps:

Navigate to the building on your smart map. If necessary, zoom in.
Select the building. A pane appears on the right-hand side showing you the levels of the building.
Click Setup to enter setup mode.
Select the level where you want to add the custom overlay.
In the upper left corner, click Add a custom overlay, and then click anywhere inside the building outline. A window appears.
Select the type of custom overlay. For more information, see Custom overlays (explained).
Select the location on your computer where the file is stored and click Continue. The custom overlay is displayed as a blue outline.

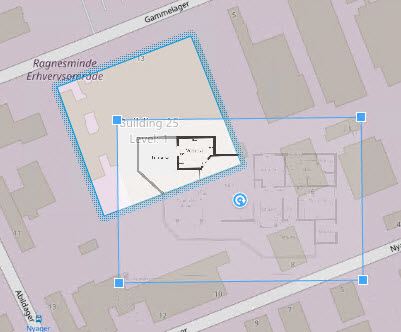

Drag it onto the outline of the building and use the pivot point and corner handles to rotate and reposition the custom overlay.
In the bar at the top, click Save.
Click Setup again to exit setup mode.
