MOBOTIX Thermal Dashboard Plug-In
Visualizing and monitoring critical temperature processes. Early fire protection and prevention.
Updated on Wednesday, July 24, 2024
The MOBOTIX Thermal Dashboard complements the MOBOTIX thermal cameras, providing live monitoring and surveillance of temperature-critical processes and a later analysis of the temperature curves. A tool that saves lives and costs with early fire detection technology. Fivefold certified!
What is needed
From MOBOTIX AG
-
MOBOTIX Thermal Cameras
-
MOBOTIX HUB Plug-Ins for Milestone XProtect
From Milestone Systems
-
Milestone XProtect
Featured content
Overview
How it works
How to install
Overview
MOBOTIX Thermal Dashboard Plug-In - Visualizing and monitoring critical temperature processes. Early fire protection and prevention.
The MOBOTIX Thermal Dashboard compliments the powerful MOBOTIX thermal cameras and expands the Milestone XProtect platform. Detect fires even before they break out. This can save lives and costs while preventing production losses.The solution provides a visualization of the temperature data and makes the live monitoring and surveillance of temperature critical processes possible, which minimizes production losses.
The dashboard can be set up as a multi-stage thermal monitoring system with Milestone XProtect.
The industries first fivefold certified thermal fire protection and prevention solution.
NEW FEATURE: Digital Gauge Display
- Display current temperature data of the camera measurement window
- Additional display of temperature in addition to the graph and camera view
- The gauge display provides the current, lowest and highest measured temperature from the past
- Visual alarm when exceeding thresholds with individual colors
MOBOTIX Quality Solutions - Made in Germany
Key features
- Thermal Spot Area - Visualization of the image area in which the temperature was detected.
- Dual Image Support - Better allocation on the “normal eye” by mirroring the marked area of the detected temperature from the “thermal eye”.
- Early fire detection and prevention that can save live and costs.
- Definition of threshold values - With visual alarms in case of exceeding and falling below the threshold. Including logging in the system log files.
- Export of temperature data - In CSV format with camera reference image and plots of the selected curve diagrams.
How it works
1 of 7
The first Video System Manufacturer with a five times certification! One of the best fire protection and prevention solutions industrywise.
2 of 7
With the new Thermal Dashboard version, we are expanding the dashboard with an additional display element that shows the temperature values digitally and provides instant readability for the user.
3 of 7
A detailed introduction of the new features, demonstrating the new possibilties and advantages of the Digital Gauge Display.
4 of 7

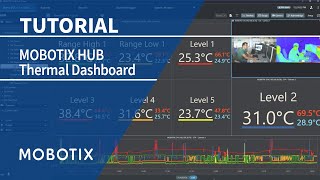

MOBOTIX Thermal Dashboard Plug-In introduction and tutorial video.
5 of 7
The user is provided with a dashboard in Milestone XProtect with video data as well as with visualization of critical temperature curves. In the dashboard, user-specific thresholds can be set.
6 of 7
Live marking of the area with the highest or lowest temperature value of the measurement window.
7 of 7
Overview of available MOBOTIX Plug-Ins for Milestone XProtect. Existing Milestone XProtect installations are now able to use the powerful MOBOTIX Plug-Ins.
Download trial
30 Days Trial: Order-Nr: Mx-SW-XPro-Th-DB-Bas-30
Download
free
How to install
Documentation
This is where you can find additional documentation
| Installation Guide - MOBOTIX Thermal Dashboard Plug-In for Milestone XProtect | pdf Download (757.05 KB) |
Milestone Verified
Read verification
Installers
Here you can find more information about installers and installation guides
| Title | Installer Guide | Installer Software |
|---|---|---|
| N/A Download |
Specification
Required MOBOTIX AG product(s)
Latest version of MOBOTIX Plug-Ins for Milestone XProtect.
Has proven compatibility with the following Milestone versions:
-
XProtectExpress+2023 R3, 11/14 2023
-
XProtectCorporate2023 R3, 11/14 2023
-
XProtectExpert2023 R3, 11/14 2023
-
XProtectProfessional+2023 R3, 11/14 2023
Is also expected to work with:
-
XProtectExpress+2023 R3, 11/14 2023 and later
-
XProtectCorporate2023 R2, 06/20 2023 and later
-
XProtectExpert2023 R2, 06/20 2023 and later
-
XProtectProfessional+2023 R3, 11/14 2023 and later
